2018年neff工廠上海航歐中國區銷售
neff采板卡、neff機箱(含電源)、neff邏輯板卡

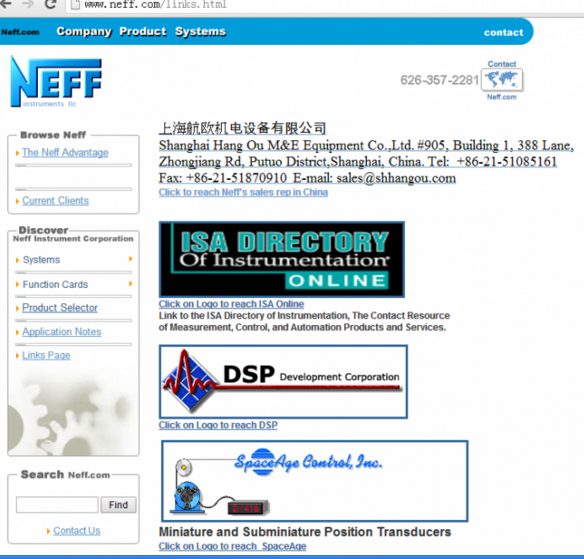

http://www.neff.com/links.html
上海航歐銷售neff采板卡neff機箱(含電源)neff邏輯板卡上海航歐機電設備有限公司從事進口機電設備、儀器儀表等疑難備品備件的銷售，是經營世界各地進口設備的現代化企業。
2018年neff工廠上海航歐中國區銷售
TheNeffAdvantage
Since1956
LocatedinMonrovia,CalifornianotfarfromPasadena,NEFFInstrumentshasbeenaleadingmanufacturerofhighperformancedataacquisitionequipmentsinceitsfoundinginthemid1950sbyGlynNeff.
System470
System620/600
System471
System472
System730
System495
System470
FunctionCards
DA23350
DA23535
6715450306
KAR-3-3205KGF-N-3205/Tr36x6
TGS-RPTS-Tr-36×6-LH-K82-A-462-0
89026352
9002335012
470100
9002335012
90023535
470051
TGS-RPTS-TR-28X5-T5-RH-1050
47001032-BitTTLInput
47001116-BitIsolatedDigitalInput-AC/DCSignals,1000Visolation.
4700122-CHFreq.orPeriodInput
47001332-BitTTLInput/Output
470014ARINC-429Controller
4700152-CHWiderangeFreq.orPeriodInput-programmablemodes.
47003032-BitTTLOutput
4700318-PointForm’C’RelayOutput-latchingrelays
47005016-CHDifferentialMultiplexer-10Hzfilterperchannel
47005116-CHDifferentialMuxw/OpenSource-w/filter
47005216-CHDifferentialMuxw/4-20mAInput-w/filter
4700544-CHBridgeConditioner/Mux-w/multiplexer,amp&filter
4700554-CHRTDConditioner/Mux-w/multiplexer,amp&filter
47005616-CHTransformer-coupledMux-1000VCMV
47005916-CHMultiplexer,DirectInput-w/ofilter
4700702-CH16-BitDACOutput
47007116-CH12-BitDACOutput
47008116ChannelIsothermalConnector
470085CalibrationCard
System471
FunctionCards
47001032-BitTTLInput
47001116-BitIsolatedDigitalInput-AC/DCSignals,1000Visolation.
4700122-CHFrequencyorPeriodInput
47001332-BitTTLInput/Output
470014ARINC-429Controller
4700152-CHWiderangeFrequencyorPeriodInput-programmable
47003032-BitTTLOutput
4700318-PointForm’C’RelayOutput-latchingrelays
47005216-CHDifferentialMuxw/4-20mAInput-w/filter
4700584-CHIsolationAmplifier
47036XModeCardsForIso-Amp
47005916-CHMultiplexer,DirectInput-w/ofilter
4700702-CH16-BitDACOutput
47007116-CH12-BitDACOutput
System472
FunctionCards
47201032-BitTTLInput
47201116-BitIsolatedDigitalInput-AC/DCSignals,1000Visolation.
4720122-CHFrequencyorPeriodInput
47201332-BitTTLInput/Output
4720152-CHWiderangeFrequencyorPeriodInput-programmable
47203032-BitTTLOutput
4720318-PointForm’C’RelayOutput-latchingrelays
47205216-CHDifferentialMuxw/4-20mAInput-w/filter
47205916-CHMultiplexer,DirectInput-w/ofilter
47206016-CHProgrammableGainAmp/Filter
4720702-CH16-BitDACOutput
47207116-CH12-BitDACOutpu
47208116ChannelIsothermalConnector
System495
FunctionCards
495200Input/ControlAssemblywithSCSIInterface(16slots)
495101ExpansionInputAssembly(16Slots)
495070250kHzProg.Amp/Filterwith16-bitADCand1megRam
495071250kHzProg.Amp/Filterwith16-bitADCand16megRam
495072250kHzProg.Amp/Filterwith16-bitADCand32megRam
495073250kHzProg.Amp/Filterwith16-bitADCand64megRam
4950801MHzProg.Amp/Filterwith14-bitADCand1megRam
4950811MHzProg.Amp/Filterwith14-bitADCand16megRam
4950821MHzProg.Amp/Filterwith14-bitADCand32megRam
4950831MHzProg.Amp/Filterwith14-bitADCand64megRam
4950858InputTriggerModule
System620/600
FunctionCards
620650-4ChannelPreampwith2-PoleButterworthFilter
620654-4ChannelPreampwith6-PoleButterworthFilter
System730
FunctionCards
2-Channelprogrammablegainamplifiercardwithtransducerconditioning
24BitIsolatedTTLinputcard
? The NEFF System 470 (S470) DAS is a complete, low cost moderate-speed DAS for use in computer-based applications. The S470 is designed primarily for computer automated data acquisition in test facilities, laboratories and industrial plants or wherever a moderate-speed DAS is required.
? The S470 is designed to accept analog inputs ranging from 5mV to 10.24V full scale in 12 programmable steps. Signal conditioning for sensors such as strain gages, RTDs, potentiometers and thermocouples is supplied by standard S470 function cards thus eliminating the need for external sources. Other function cards support digital I/O, frequency measurement and analog output.
? S470 consists of a 7-inch high, 19-inch wide enclosure with power supply, backplane wiring, I/O Control Logic printed circuit card, Analog Subassembly printed circuit card and 16 I/O card slots that accept any combination of S470 function cards. A Control/Display panel is optional and an expansion assembly is available to extend function card capacity to 32. The maximum number of channels or data points to be serviced depends on the type of function cards used. Thirty-two 16-channel Multiplexer cards, for example, provide 512 channels of analog input while a full complement of 32-bit TTL input cards accommodate 1024 single data points.
? The Series 600 is NEFF’s top-of-the-line data acquisition system providing the utmost in performance, accuracy and convenience. Featuring leading-edge technology and innovative design, Series 600 brings extensive automation and complete programmability to the testing laboratory.
? The key to Series 600’s high performance is the effective combination of fully programmable preamp/filters, programmable post amplifier, sophisticated microprocessor-controlled calibration circuits and the amplifier-per-channel data acquisition technique that realizes the lowest noise level and highest common mode rejection obtainable in a data acquisition system.
? Programmable Gain Over the Full Dynamic Range
With programmable gain, test setup time is greatly reduced as is the bother and confusion of manual switch settings. In Series 600 the range of each channel is programmable from +/-5mV full scale to +/-10.24V full scale in 12 binary steps.
? Preamps Include Programmable Filter
Two types of input preamps are available in Series 600 to allow both static and dynamic measurements. Both have programmable filter cutoff frequencies of 1Hz, 10Hz, 100Hz and 1kHz. Low-level differential preamps (620650 and 620654) have 2-pole and 6-pole Butterworth filters, respectively.
? The sample and hold preamp (620654) permits simultaneous sampling of multiple low-level input channels and is used where minimum channel-to-channel skew is required. both preamps have fully guarded inputs and operate from grounded or floating signal sources.
? Automatic Calibration
On command the internal microprocessor takes over control of the Series 600 and begins a sequence of steps to derive and store calibration factors for each channel. The calibration data is stored in on-board memories and during run mode are summed with the post amplifier output voltage to obtain fully calibrated signals for conversion by the ADC.
? The automatic calibration procedure results in static accuracy of (0.02%
